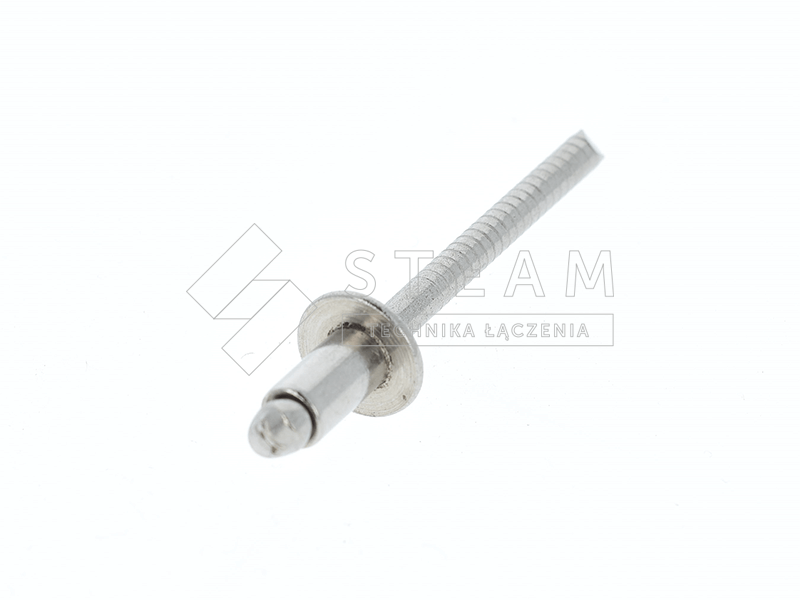

Nity Standard A2-A2
Nity Standard A2-A2 - obrazek 2

Nity Standard A2-A2

Kategorie: ,
SKU: Nity Standard A2-A2

Nity Standard A2-A2

Widok 360

Schemat

Wymiary

d1 [mm]L Nominal[mm]mmd2 [mm]K [mm]W [mm]E [mm] min – max(N)(N)
2,462,505,000,601,502,0 – 3,510001250
83,5 – 5,5
105,5 – 7,5
127,5 – 9,5
d1 [mm]L Nominal[mm]mmd2 [mm]K [mm]W [mm]E [mm] min – max(N)(N)
3,053,106,001,002,000,5 – 2,518002200
60,5 – 3,0
83,0 – 5,0
105,0 – 6,5
126,5 – 8,5
148,5 – 10,5
d1 [mm]L Nominal[mm]mmd2 [mm]K [mm]W [mm]E [mm] min – max(N)(N)
3,263,306,401,002,100,5 – 3,019002500
83,0 – 5,0
105,0 – 6,5
126,5 – 8,5
158,5 – 12,0
1812,0 – 15,0
d1 [mm]L Nominal[mm]mmd2 [mm]K [mm]W [mm]E [mm] min – max(N)(N)
4,064,108,001,302,401,0 – 2,527003500
82,5 – 4,5
104,5 – 6,5
126,5 – 8,5
148,5 – 10,0
1610,0 – 12,0
1812,0 – 14,0
2014,0 – 16,0
2516,0 – 20
d1 [mm]L Nominal[mm]mmd2 [mm]K [mm]W [mm]E [mm] min – max(N)(N)
4,884,909,001,603,102,0 – 4,047005800
104,0 – 6,0
126,0 – 8,0
148,0 – 9,5
169,5 – 11,0
1811,0 – 13,0
2013,0 – 16,0
2516,0 – 19,0
3019,0 – 24,0
3524,0 – 29,0
4029,0 – 34,0
d1 [mm]L Nominal[mm]mmd2 [mm]K [mm]W [mm]E [mm] min – max(N)(N)
5,085,109,001,603,102,0 – 4,047005800
104,0 – 6,0
126,0 – 8,0
148,0 – 9,5
169,5 – 11,0
2013,0 – 16,0
2516,0 – 19,0
3019,0 – 24,0
3524,0 – 29,0
4029,0 – 34,0
d1 [mm]L Nominal[mm]mmd2 [mm]K [mm]W [mm]E [mm] min – max(N)(N)
6,4126,5012,502,203,852,0 – 6,070009000
156,0 – 9,0
189,0 – 12,0
2012,0 – 14,0
2514,0 – 18,0
