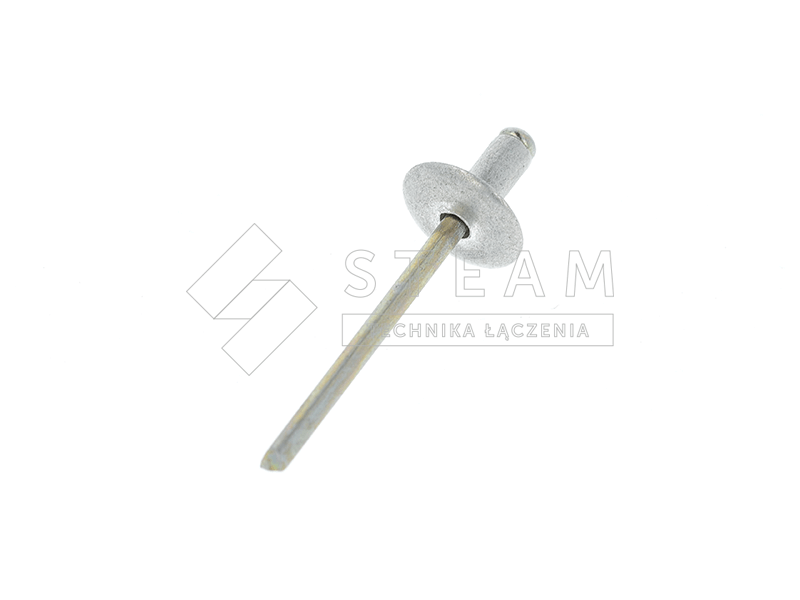

Nity z dużym kołnierzem AL-ST
Nity z dużym kołnierzem AL-ST - obrazek 2

Nity z dużym kołnierzem AL-ST

Kategorie: ,
SKU: Nity z dużym kołnierzem AL-ST

Nity z dużym kołnierzem AL-ST

Widok 360

Schemat

Wymiary

d1 [mm]L Nominal[mm]mmd2 [mm]K [mm]W [mm]E [mm] min – max(N)(N)
3,2 63,309,501,101,80 0,5 – 3,57501100
 8 3,5 – 5,0
 10 5,0 – 7,0
127,0 – 9,0
167,0 – 13,0
d1 [mm]L Nominal[mm]mmd2 [mm]K [mm]W [mm]E [mm] min – max(N)(N)
 4,0          8 4,1012,001,402,203,0 – 5,012501800
105,0 – 6,5
126,5 – 8,5
148,5 – 10,5
1610,5 – 12,5
1812,5 – 14,5
2014,5 – 16,5
d1 [mm]L Nominal[mm]mmd2 [mm]K [mm]W [mm]E [mm] min – max(N)(N)
4,8104,9014,001,802,654,5 – 6,018502600
126,0 – 8,0
148,0 – 10,0
1610,0 – 12,0
1812,0 – 14,0
2114,0 – 17,0
2417,0 – 20,0
2720,0 – 23,0
3023,0 – 25,0
3525,0 – 30,0
4030,0 – 35,0
4535,0 – 40,0
5040,0 – 45,0
d1 [mm]L Nominal[mm]mmd2 [mm]K [mm]W [mm]E [mm] min – max(N)(N)
4,8
104,9016,001,802,654,5 – 6,018502600
126,0 – 8,0
148,0 – 10,0
1610,0 – 12,0
1812,0 – 14,0
2114,0 – 17,0
2417,0 – 20,0
2720,0 – 23,0
3023,0 – 25,0
3525,0 – 30,0
d1 [mm]L Nominal[mm]mmd2 [mm]K [mm]W [mm]E [mm] min – max(N)(N)
 4,8   25 4,9019,001,802,6517,0 – 20,020002700
3020,0 – 25,0
d1 [mm]L Nominal[mm]mmd2 [mm]K [mm]W [mm]E [mm] min – max(N)(N)
5,08 5,1014,00 1,802,653,0 – 4,5 2150 3100
104,5 – 6,0
126,0 – 8,0
148,0 – 10,0
1610,0 – 12,0
1812,0 – 14,0
2014,0 – 16,0
2516,0 – 21,0
3021,0 – 25,0
d1 [mm]L Nominal[mm]mmd2 [mm]K [mm]W [mm]E [mm] min – max(N)(N)
6,410 6,5015,002,003,602,0 – 4,034004850
123,0 – 6,0
